lOMoARcPSD| 59285474
ĐẠI HỌC QUỐC GIA THÀNH PHỐ HỒ CHÍ MINH
TRƯỜNG ĐẠI HỌC CÔNG NGHỆ THÔNG TIN KHOA
KỸ THUẬT MÁY TÍNH
BÁO CÁO BÀI THỰC HÀNH LAB1 THIẾT
KẾ HỆ THỐNG SoC
Sinh viên thực hiện
NGUYỄN THƯỜNG QUÂN – 21522498
Giảng viên hướng dẫn
Phạm
Thanh Hùng
Tp. Hồ Chí Minh, ngày 13 tháng 4 năm 2024
Ojectives:
- Designing and testing an 8-bit carry-select adder using Verilog.
lOMoARcPSD| 59285474
- Simulate the operation of the adder design by executing the simulation on Vivado. -
Design a FIFO.
- Simulate and debug the FIFP design using Vivado.

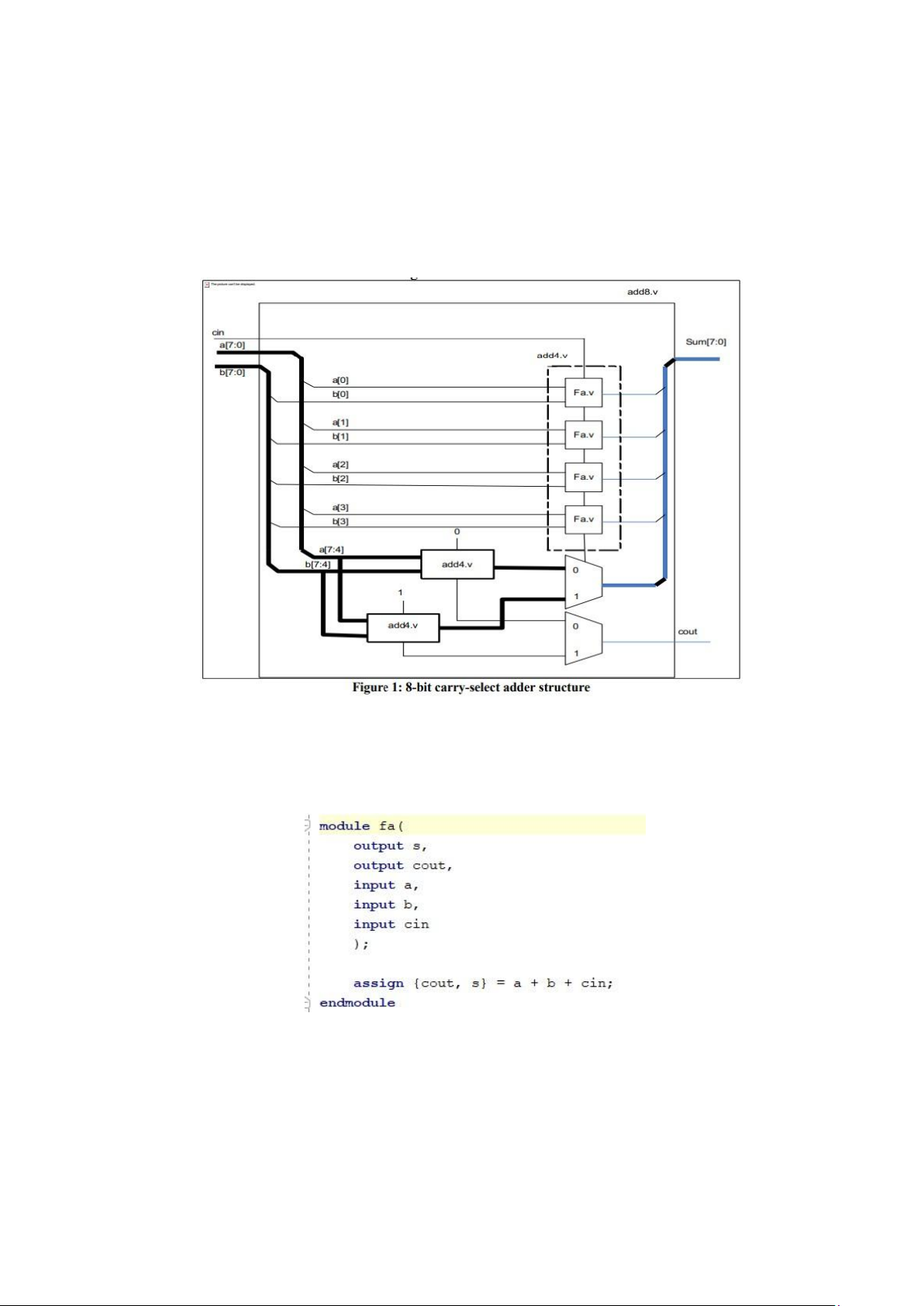

I. Design an 8-bit carry-select adder using Verilog
We have 3 module design: fa.v, add4.v, add8.v
1. Module fa – fulladder
Design a module fulladder 1 bit using behavioral model:

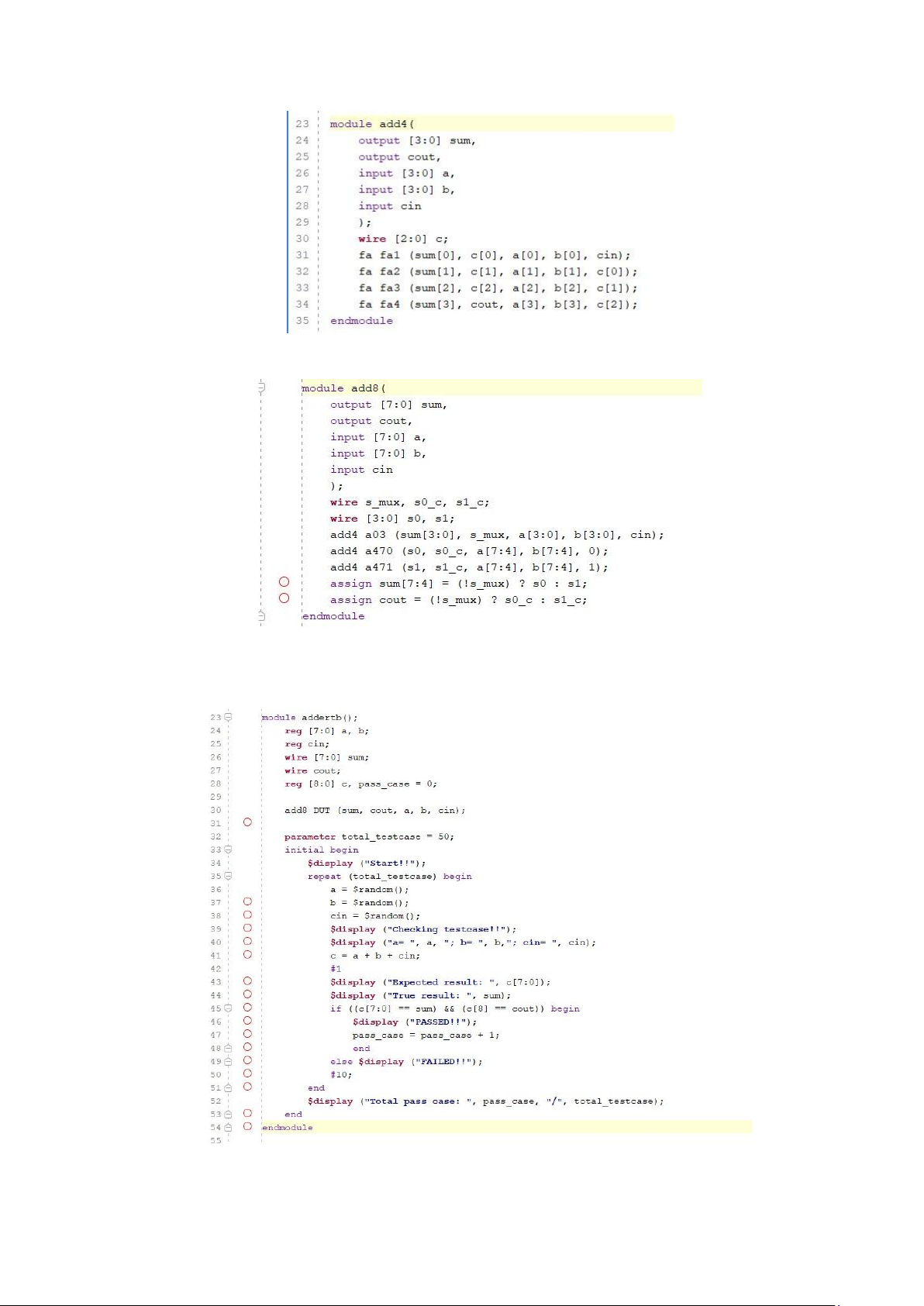

2. Module add4 – 4 fulladder
lOMoARcPSD| 59285474
3. Module add8
This also the top-level module of design
4. Testbench – addertb
In this testbench, we will drive 3 input a, b, cin with random value. We'll compare the
result from module with variable c = a + b + cin. If equal, print "PASSED" to console.
lOMoARcPSD| 59285474
Unless print "FAILED". Variable pass_case is used to check total pass case of total test
case we have.
II. Simulation adder

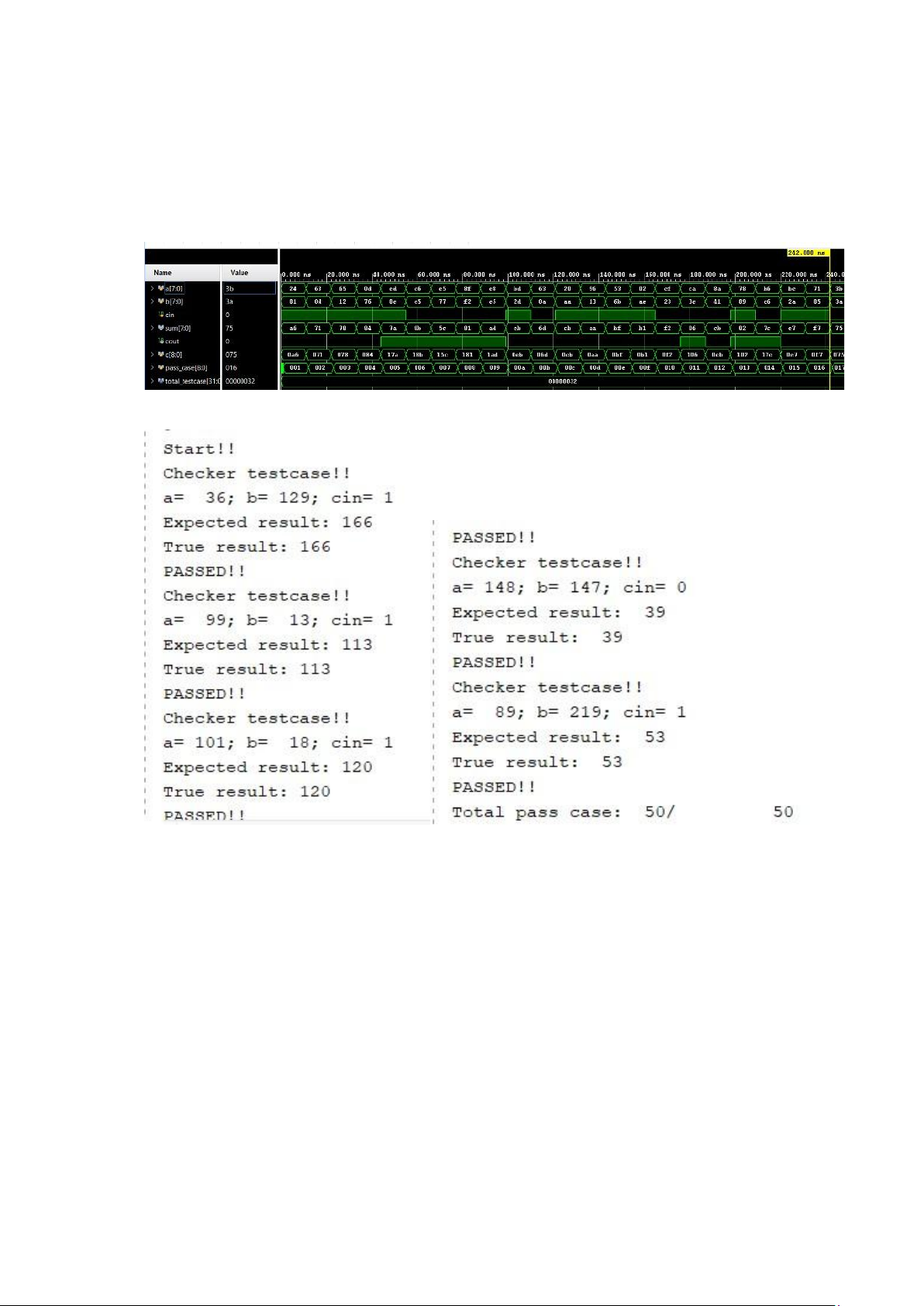

Run simulation the adder design, we have waveform result:
With checker in module testbench, we will check the result in Tcl console:
III. Design FIFO
FIFO (First In – First Out) is a queue that the first data to be written is the first data will
be read out.
In this lab, we will desgin a generic DxW-bit FIFO.
- D (depth) = 8
- W (width) = 32
lOMoARcPSD| 59285474

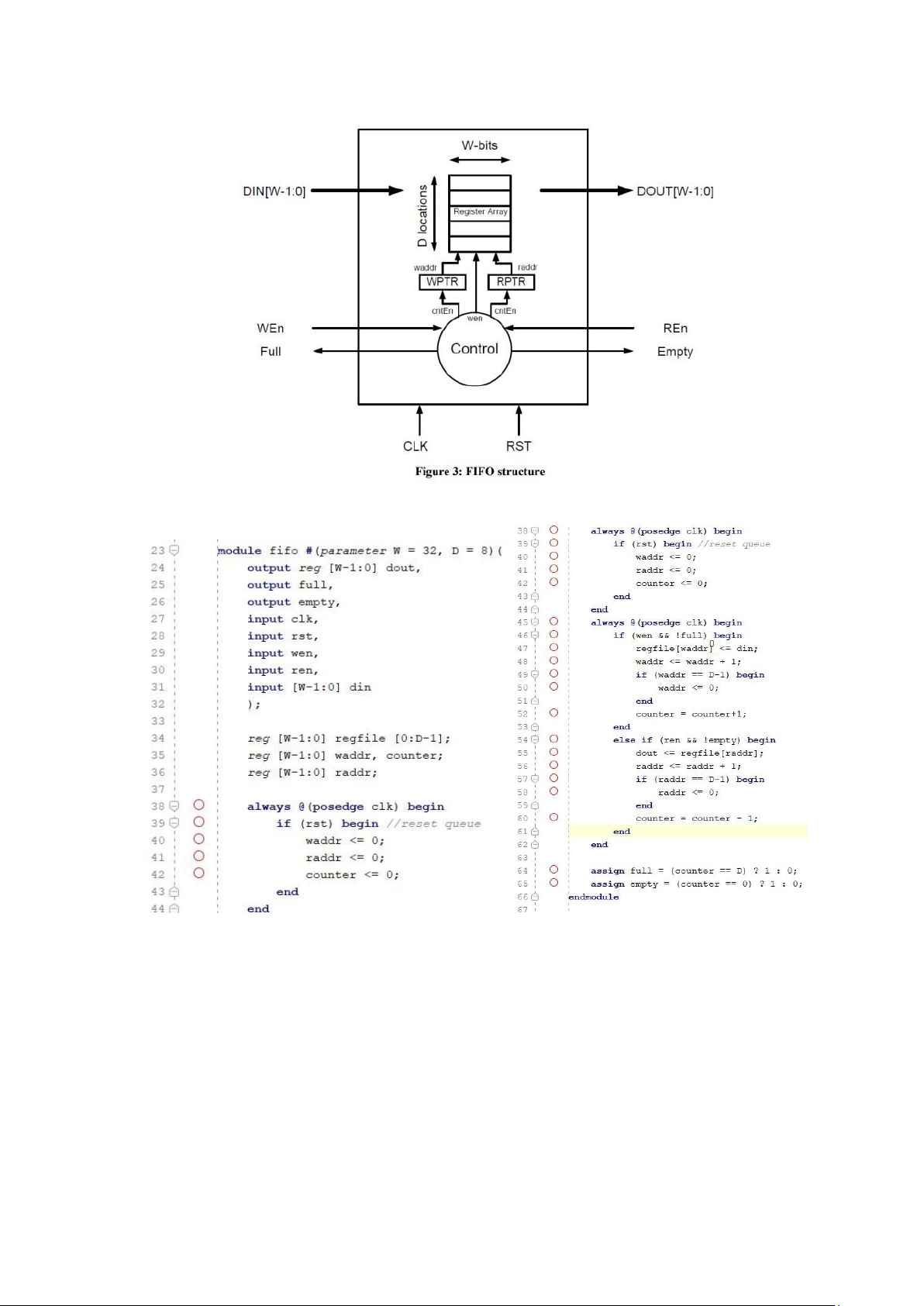

We will design the FIFO in only one module:
When reset signal = 1 (synchronous active-high), write and read pointer (waddr and raddr)
reset to zero, counter = 0.
Waddr and raddr is the pointer of this FIFO. Imagine, raddr is the head of queue and
waddr is the tail of queue.
The full flag is on when the counter reaches Depth, the empty flag is on when the counter
downs to Zero.

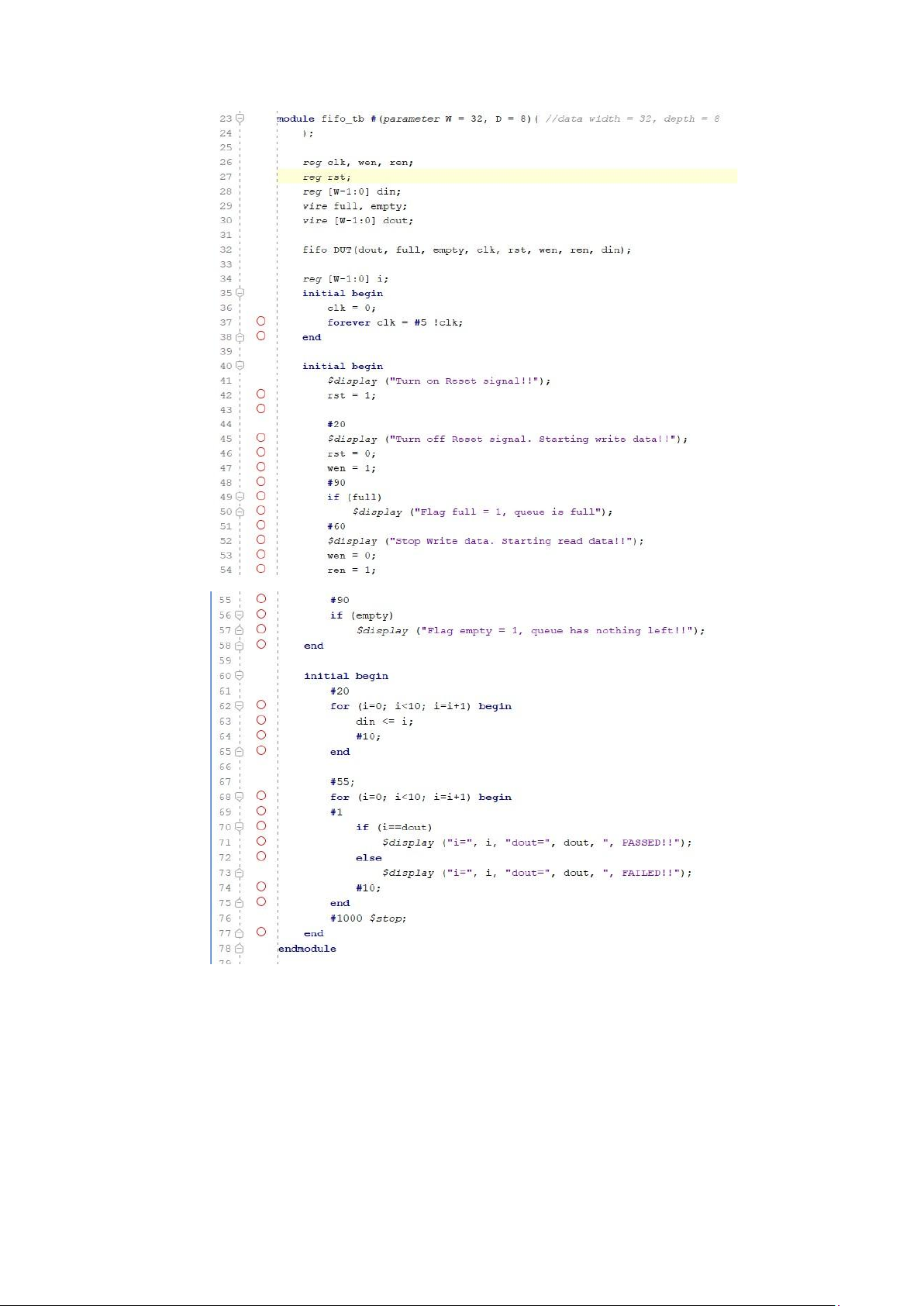

Testbench:
lOMoARcPSD| 59285474
In this testbench, we will drive input "din" with the value from 0 to 10. We set the fit time
delay to rise and fall these signals.
When reading data (dout rising), we will compare that with the same value of input. If
equal, print PASSED to console. Unless print FAILED.
IV. Simulation FIFO

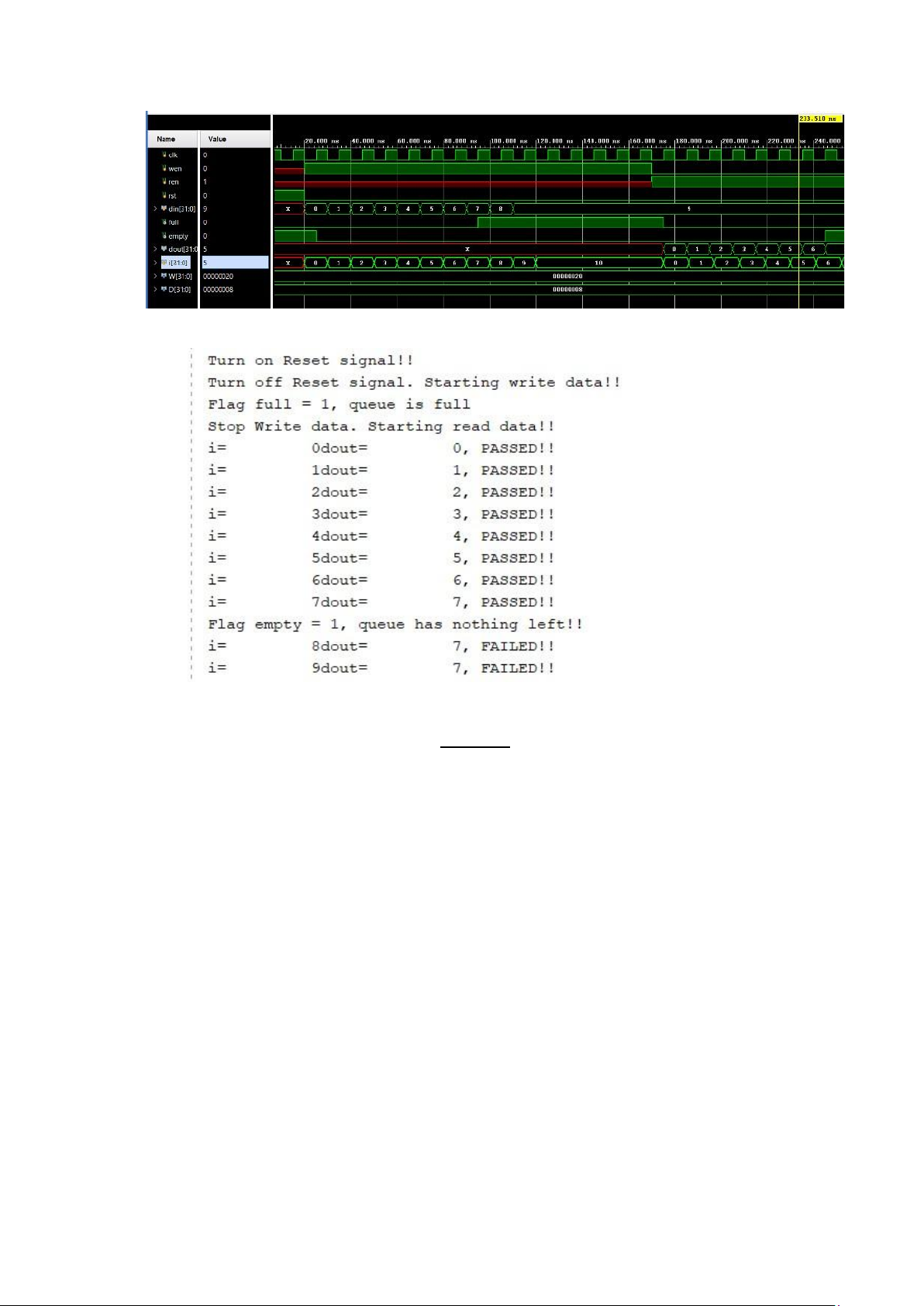

Run simulation the FIFO design, we have the result:
lOMoARcPSD| 59285474
With self-checker in testbench, we'll check the result in Tcl console:
As we see, the Tcl console result is the same to we expected.
The end!
