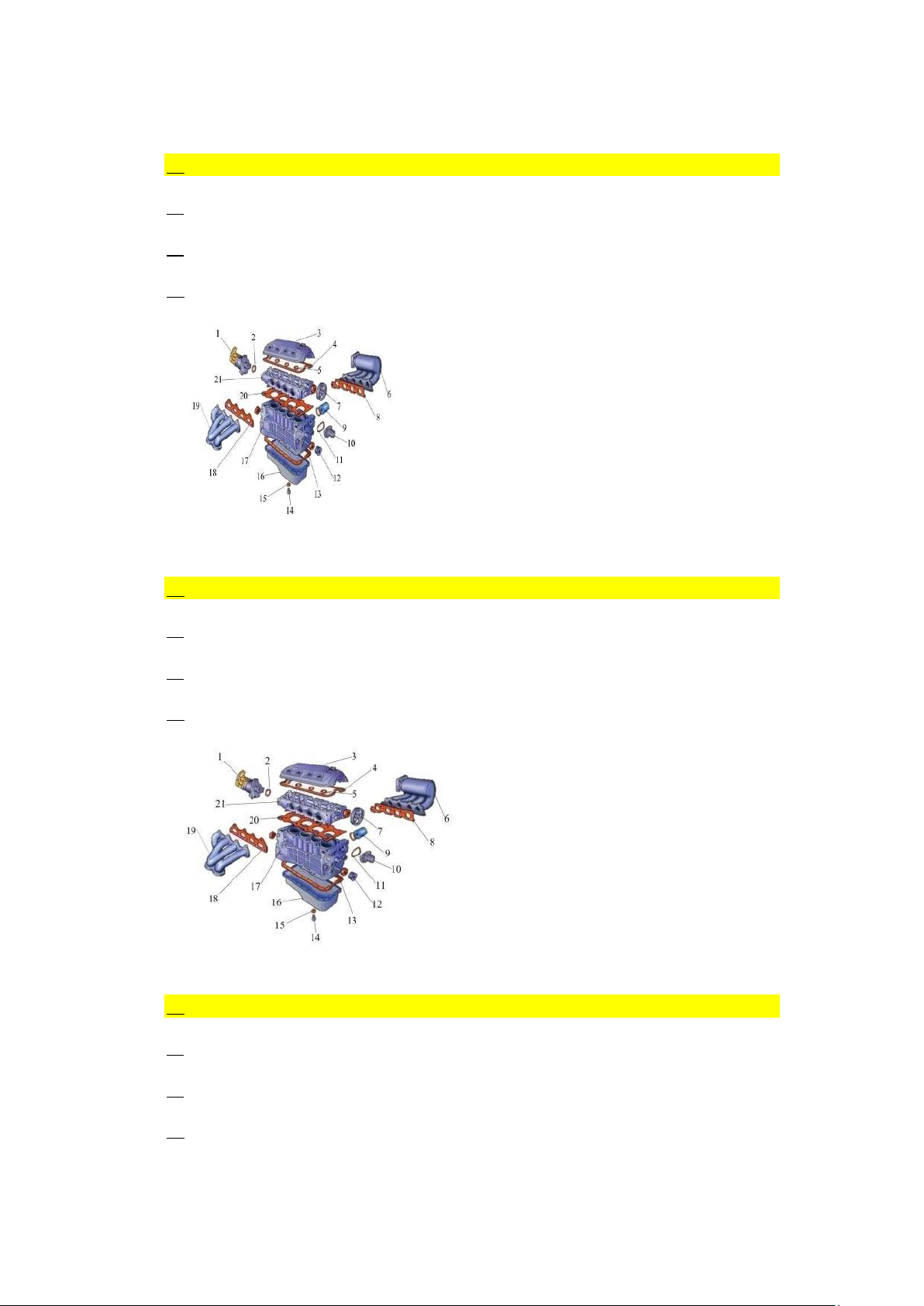

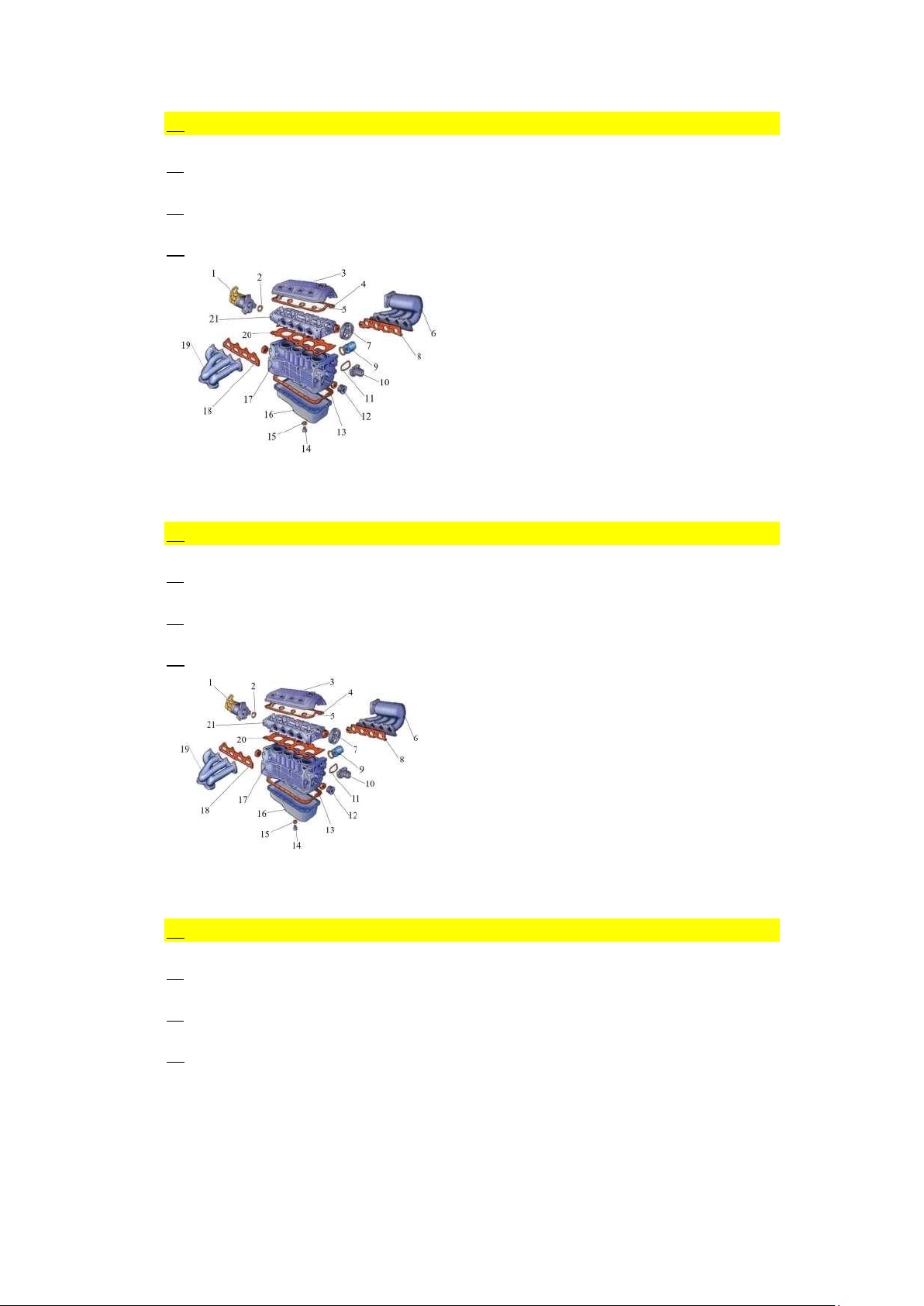

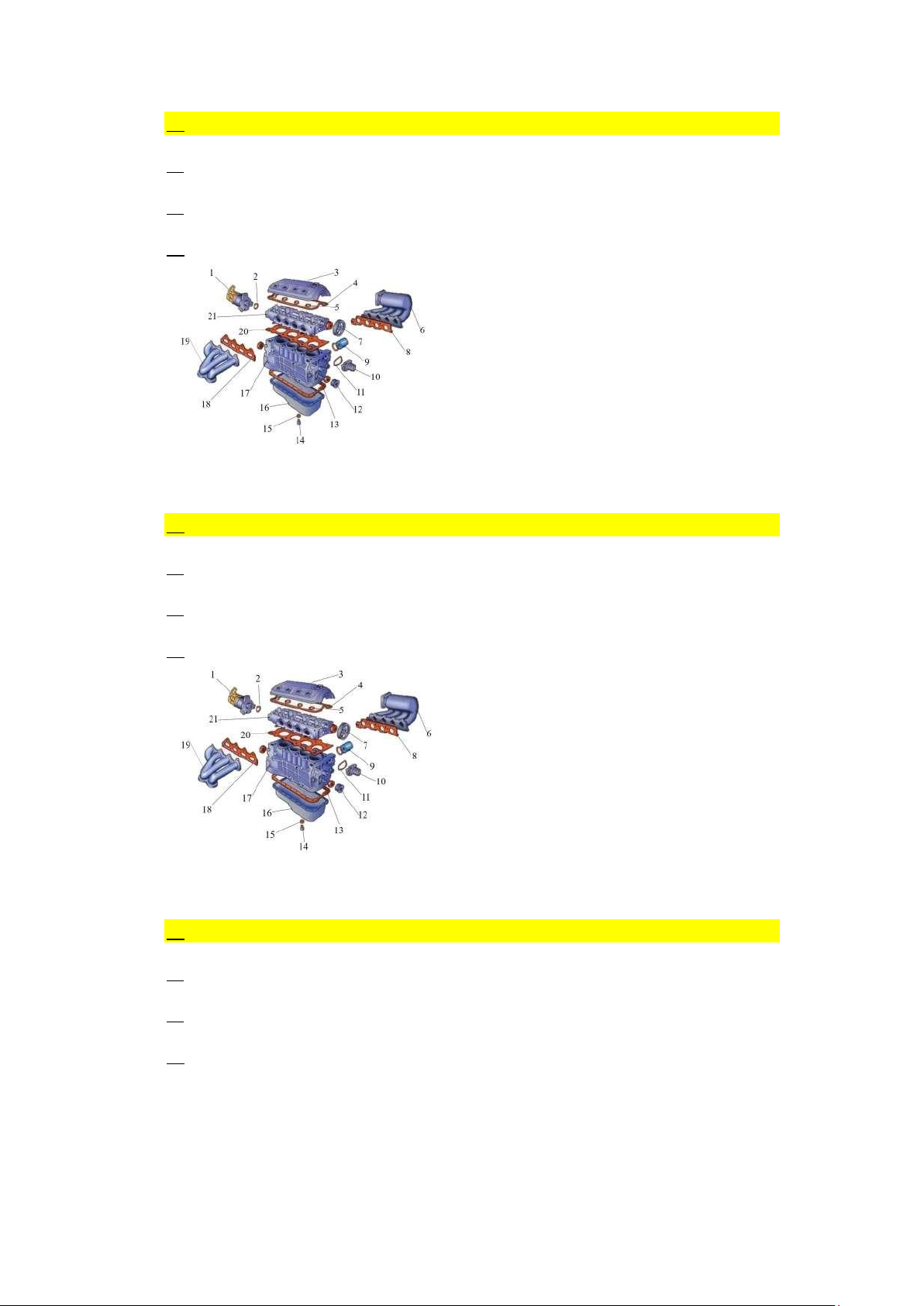

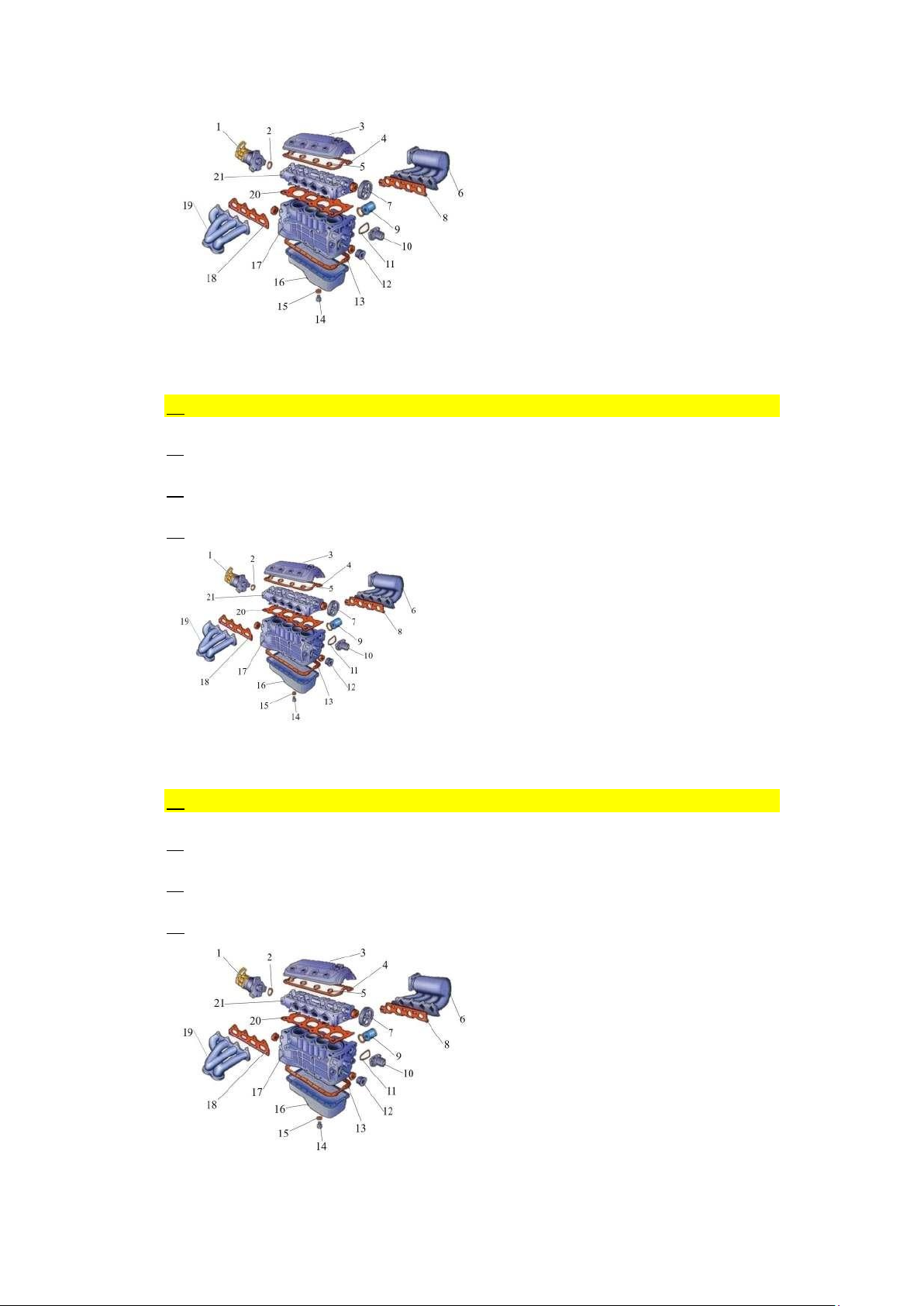

1. What this is the component of 1 in the figure 1.3? A. Distributor B. Cylinder head cover C. Intake manifold D. Cylinder head
2. What this is the component of 2 in the figure 1.3? A. Distributor oring B. Cylinder head cover C. Intake manifold D. Cylinder head
3. What this is the component of 3 in the figure 1.3? A. Cylinder head cover B. Inlet valve C. Intake manifold D. Rocker shaft lOMoAR cPSD| 58504431
4. What this is the component of 4 in the figure 1.3? A. Cylinder head cover gasket B. Cylinder head cover C. Connecting rod D. Exhaust manifold gasket
5. What this is the component of 8 in the figure 1.3? A. Intake manifold gasket B. Exhaust manifold gasket C. Cylinder head cover gasket D. Water pump gasket
6. What this is the component of 7 in the figure 1.3? lOMoAR cPSD| 58504431 A. Camshaft pulley B. Water pump C. Engine block D. Distributor
7. What this is the component of 9 in the figure 1.3? A. Oil filter B. Oil pan C. Head gasket D. Spring
8. What this is the component of 12 in the figure 1.3? A. Timing belt drive pully B. Camshaft C. Oil pan the drain bolt D. Drain bolt crush washer lOMoAR cPSD| 58504431
9. What this is the component of 17 in the figure 1.3? A. Engine block B. Cylinder head C. Oil filter D. Piston

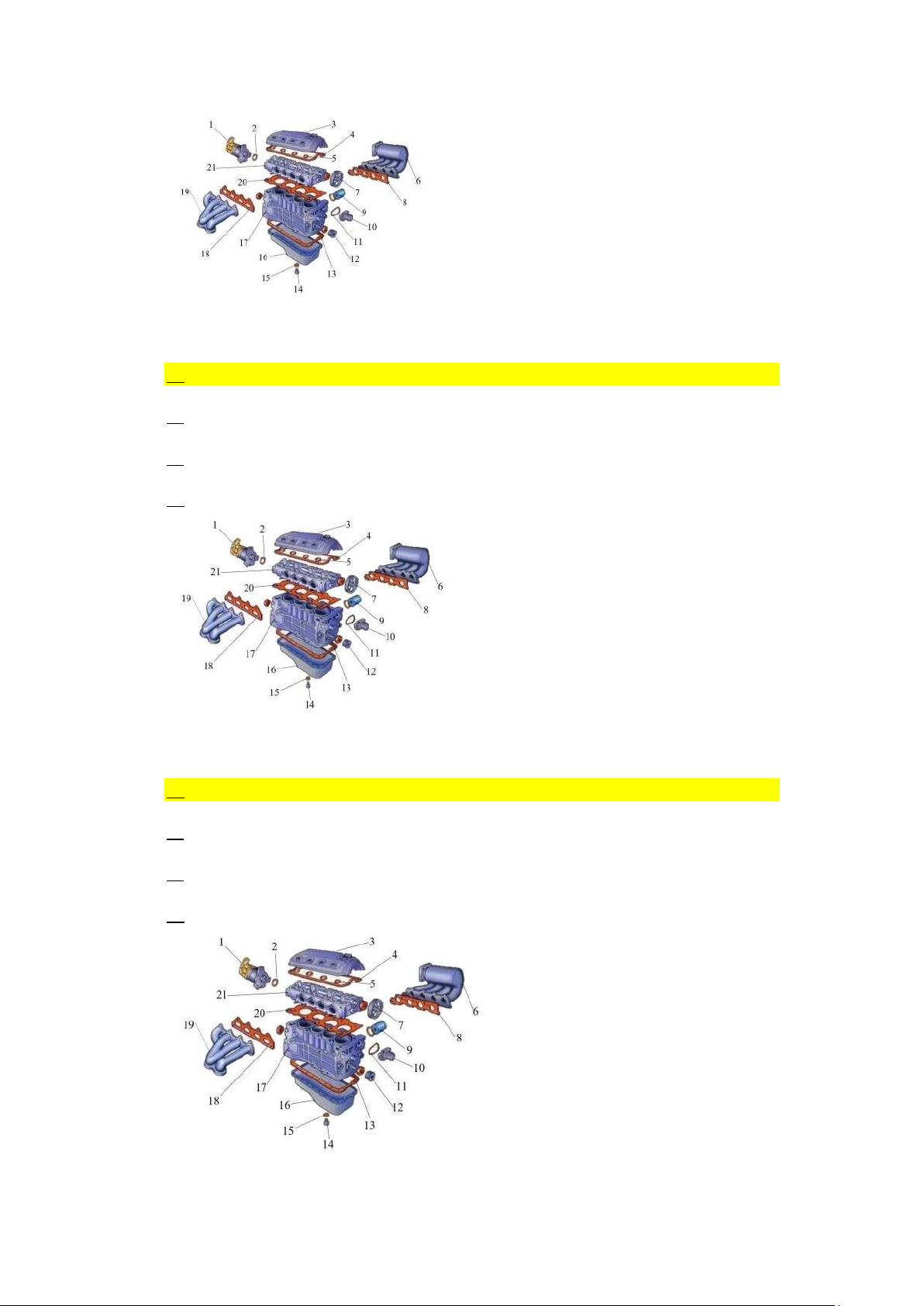

10. What this is the component of 19 in the figure 1.3? A. Exhaust manifold B. Intake manifold C. Water pump D. Engine block
11. What this is the component of 20 in the figure 1.3? lOMoAR cPSD| 58504431 A. Head gasket B. Water pump gasket C. Intake manifold gasket D. Exhaust manifold gasket
12. What this is the component of 21 in the figure 1.3? A. Cylinder head B. Oil pan C. Connecting rod cap D. Injectors
13. What this is the component of 14 in the figure 1.3? A. Oil pan the drain bolt B. Drain bolt crush washer 15 C. Fuel distributor D. Insulator tip lOMoAR cPSD| 58504431 Figure 1.1: Structure

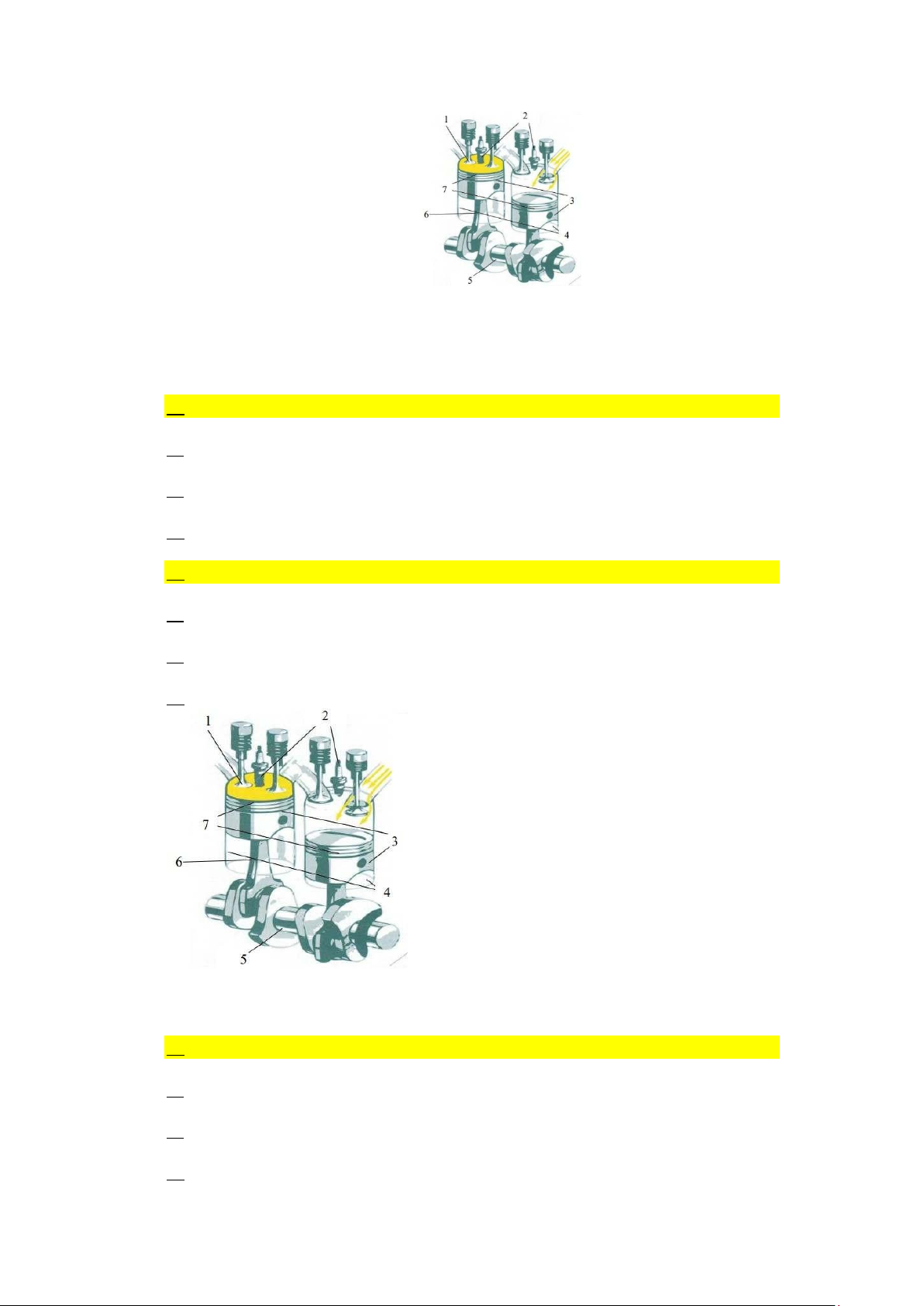

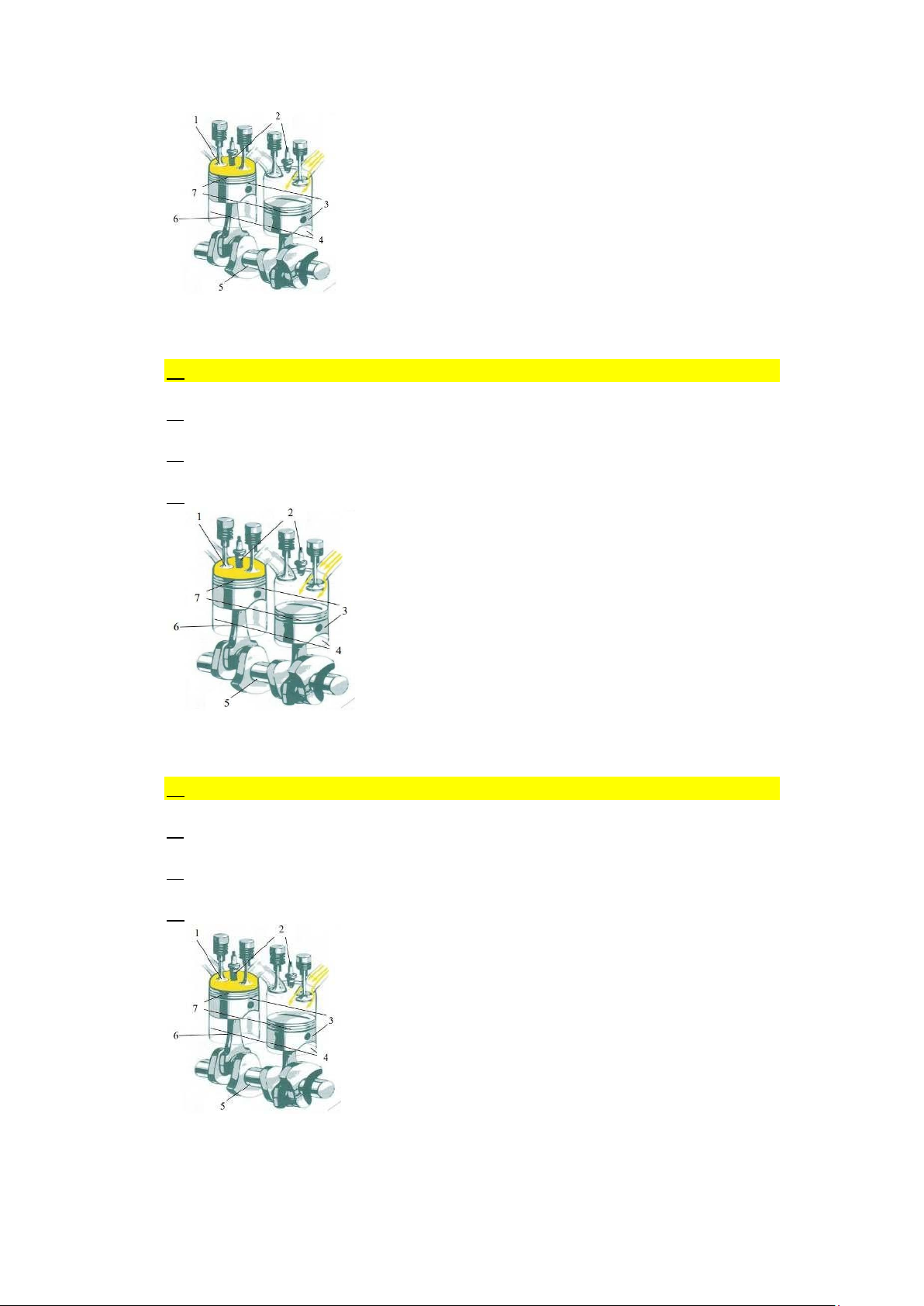

14. What this is the component of 1 in the figure 1.1? A. Valve B. Spark plug C. Piston
D. Cylinder What this is the component of 2 in the figure 1.1? A. Spark plug B. Valve C. Cylinder D. Piston ring 7
15. What this is the component of 3 in the figure 1.1? A. Piston B. Connecting rod C. Crankshaft D. Valve lOMoAR cPSD| 58504431
16. What this is the component of 4 in the figure 1.1? A. Cylinder B. Crankshaft C. Valve D. Connecting rod

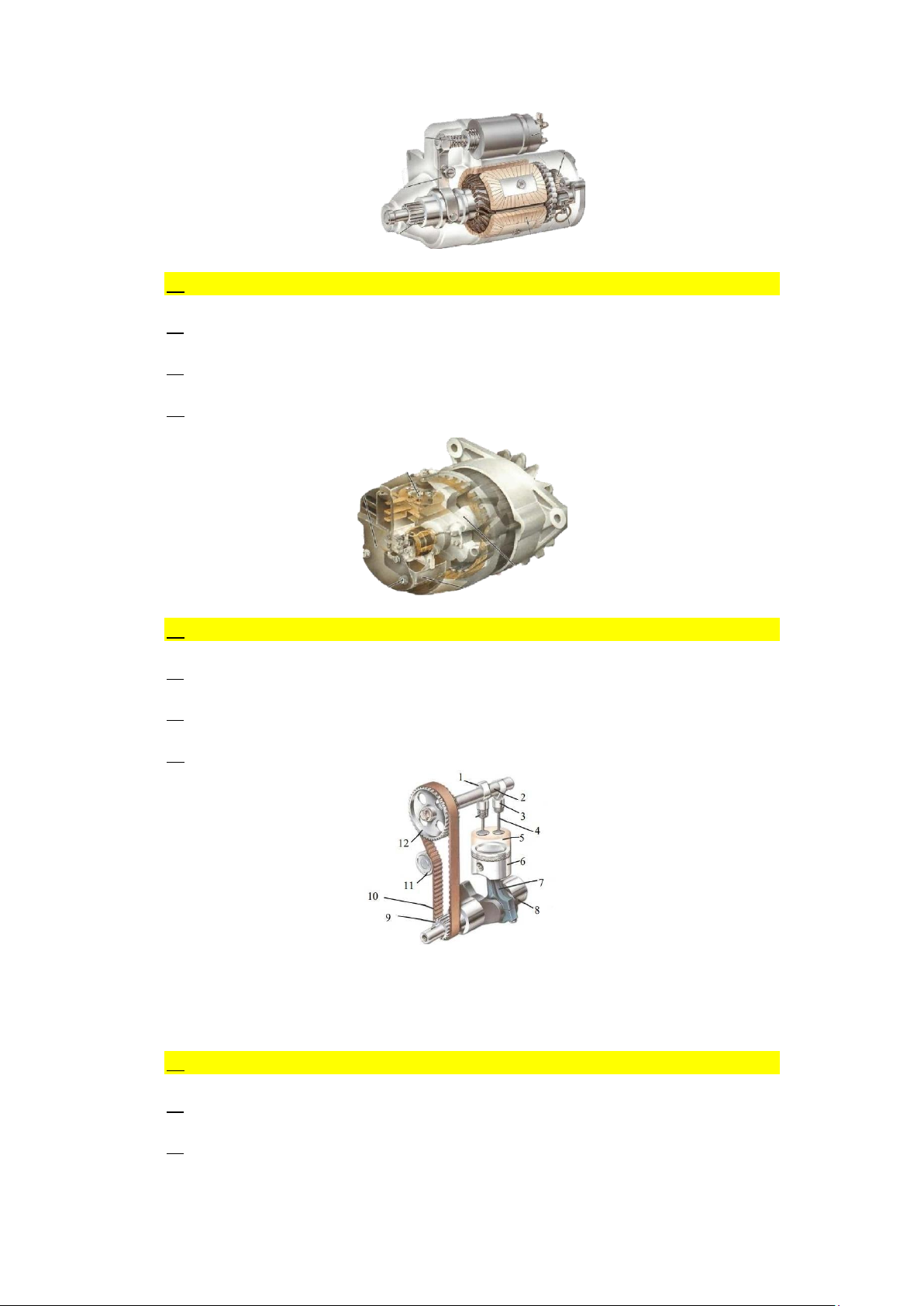

17. What this is the component of 5 in the figure 1.1? A. Crankshaft B. Connecting rod 6 C. Valve D. Cylinder 18. What is this? lOMoAR cPSD| 58504431 A. Starting system B. Charging system C. Fuel system
D. Ignition system What is this? A. Charging system B. Starting system C. Fuel system D. Ignition system

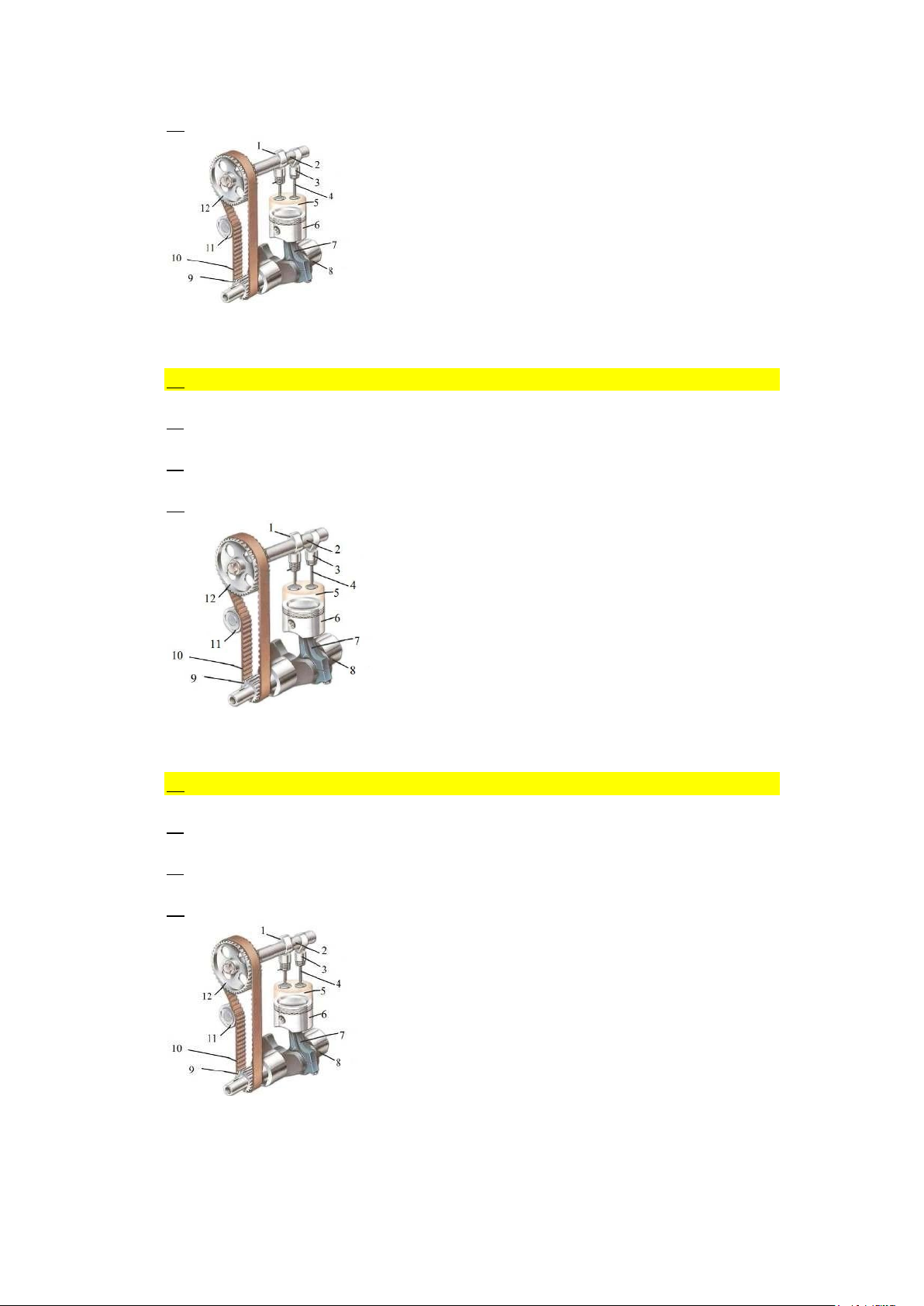

Figure 1.5: Single overhead camshaft
19. What this is the component of 1 in the figure 1.5? A. Cam B. Camshaft C. Vavle lOMoAR cPSD| 58504431 D. Rocker ams
20. What this is the component of 4 in the figure 1.5? A. Vavle B. Crankshaft C. Cylinder D. Return spring
21. What this is the component of 11 in the figure 1.5? A. Idler wheel B. Drive blet 10 12 camshaft sprocket C. Vavle D. Cam
UNIT 2: DIESEL VS GASOLINE 22. What is this? lOMoAR cPSD| 58504431 A. Spark plug B. Vavle C. Fuel injector D. Push rods

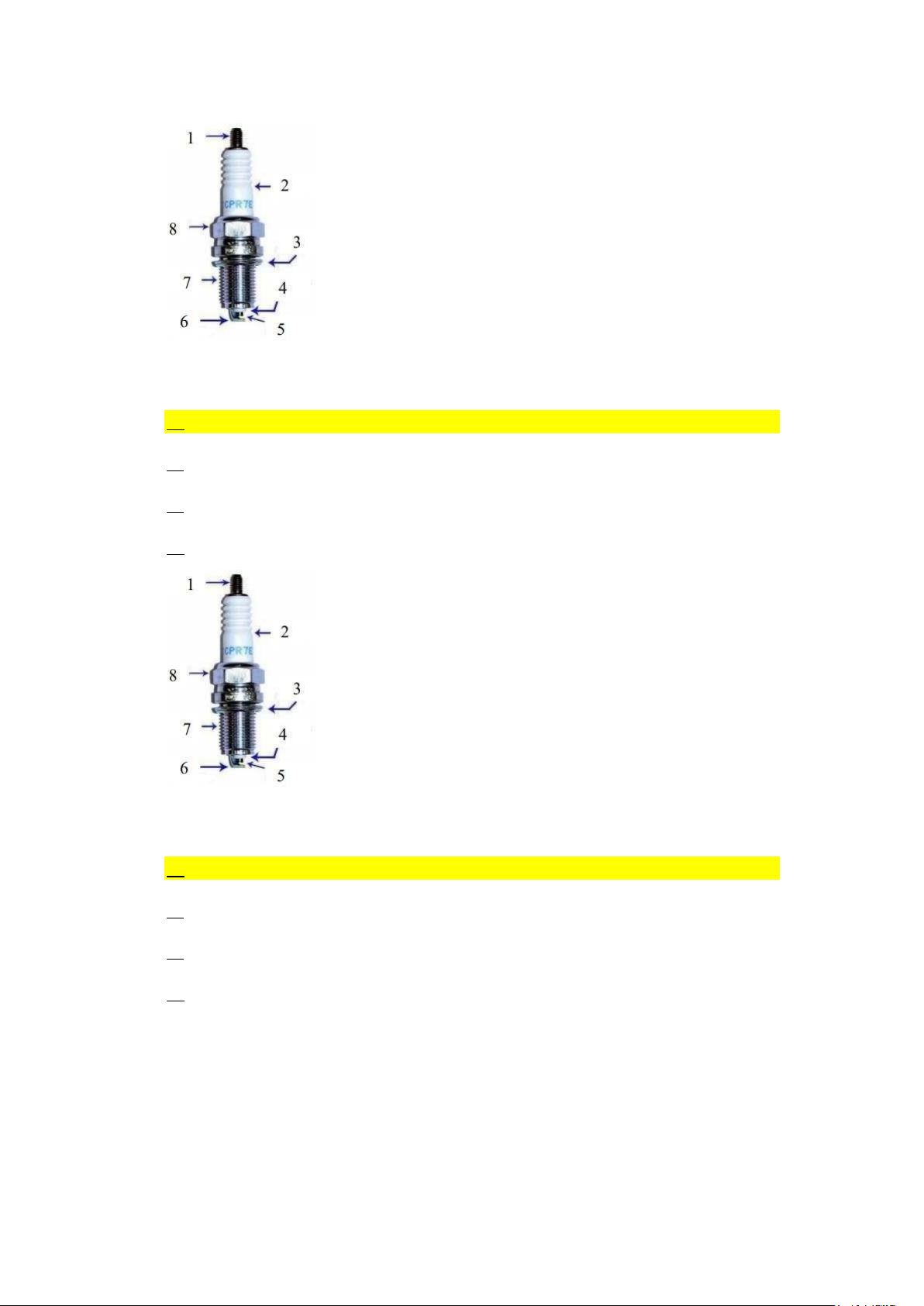

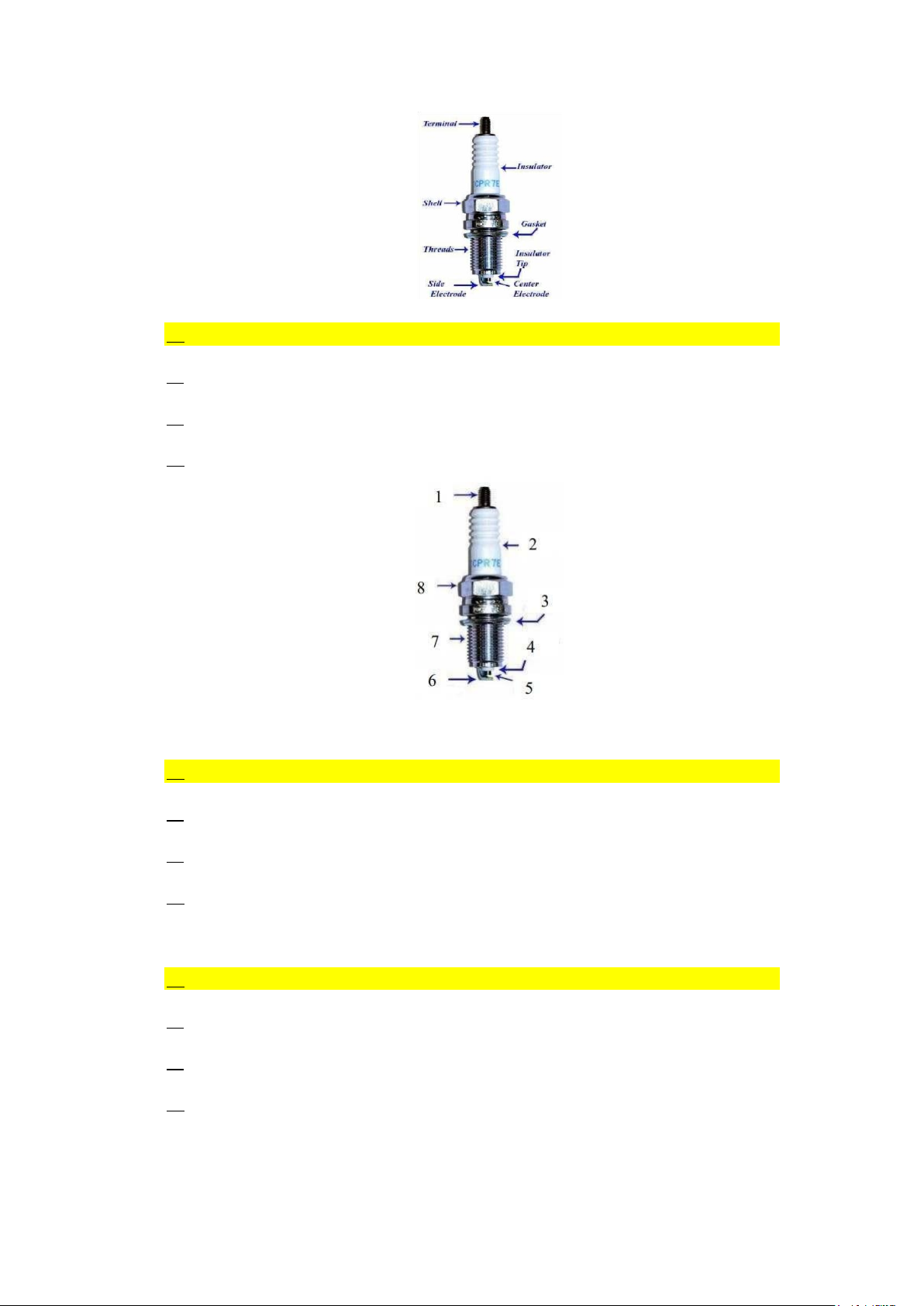

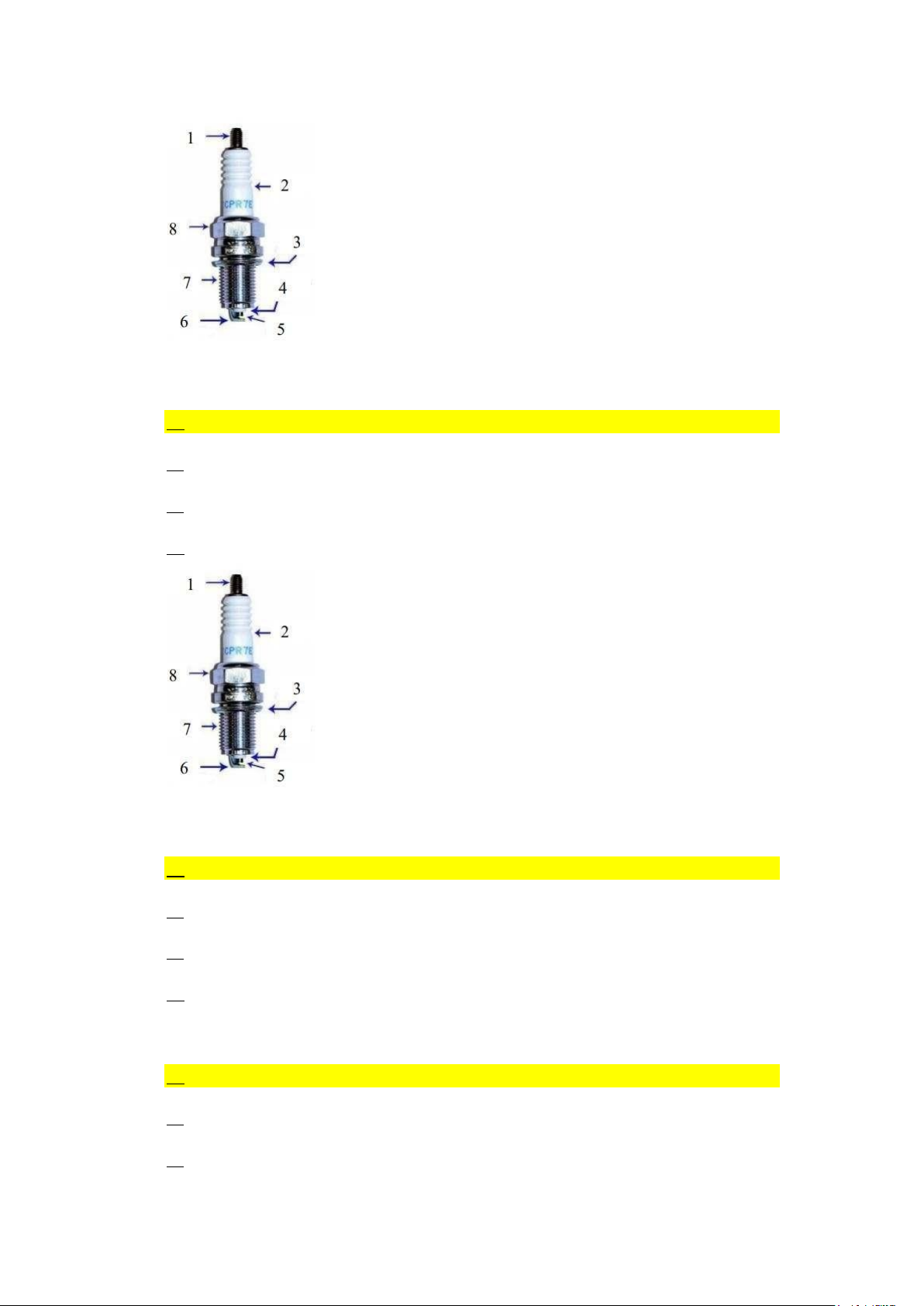

23. What this is the component of 1 in the figure 2.7? A. Terminal B. Insulator C. Gasket D. Center electrode
What this is the component of 2 in the figure 2.7? A. Insulator B. Terminal C. Threads D. Shell lOMoAR cPSD| 58504431
24. What this is the component of 3 in the figure 2.7? A. Gasket B. Shell C. Terminal D. Side electrode
25. What this is the component of 5 in the figure 2.7? A. Center electrode B. Insulator tip 4 C. Side electrode 6 D. Threads lOMoAR cPSD| 58504431
26. What this is the component of 7 in the figure 2.7? A. Threads B. Shell C. Gasket D. Terminal
27. What this is the component of 8 in the figure 2.7? A. Shell B. Gasket C. Terminal D. Threads 28. What is this? A. High pressure pump B. Fuel injector C. Turbocharger lOMoAR cPSD| 58504431 D. Crankshaft

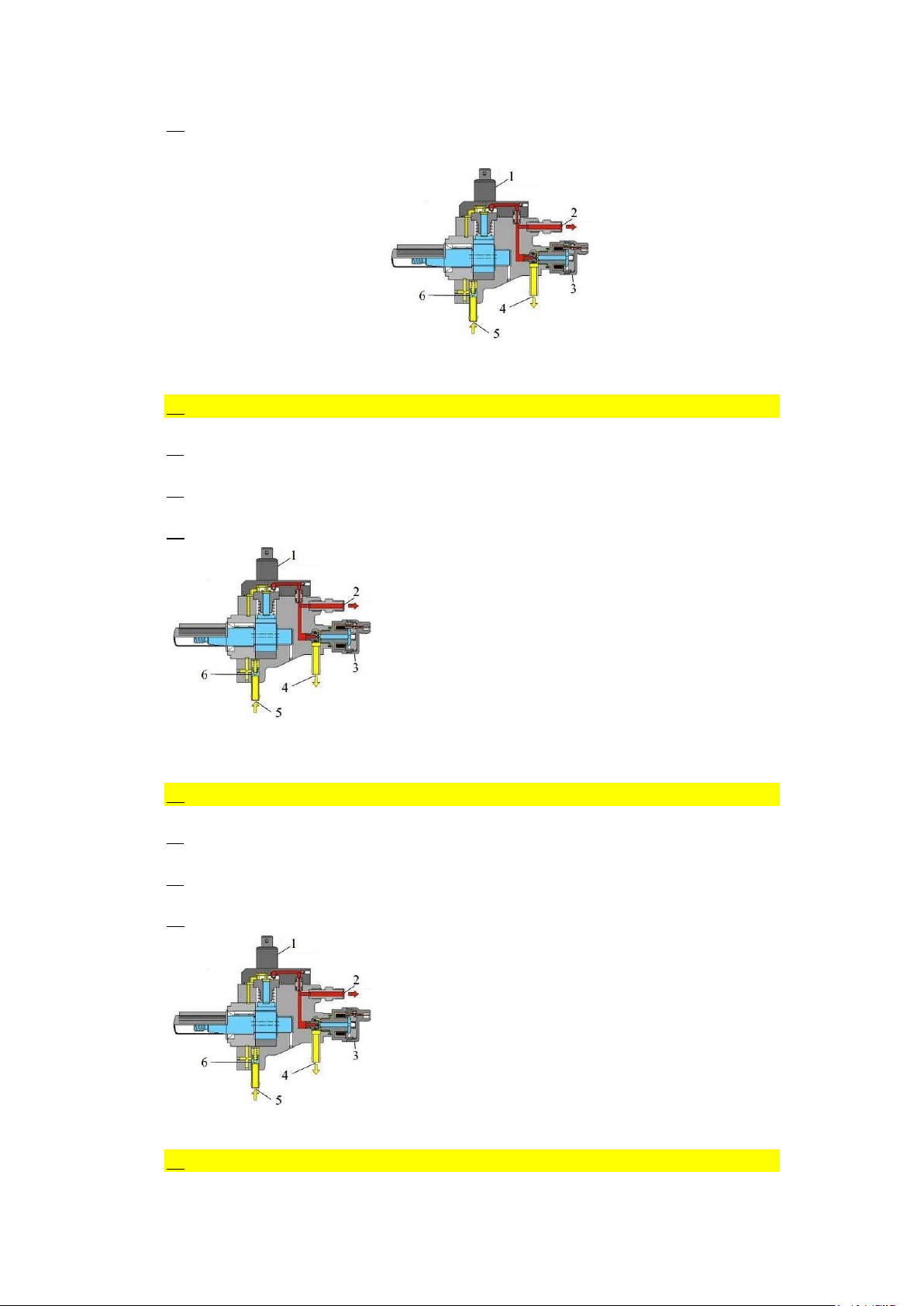

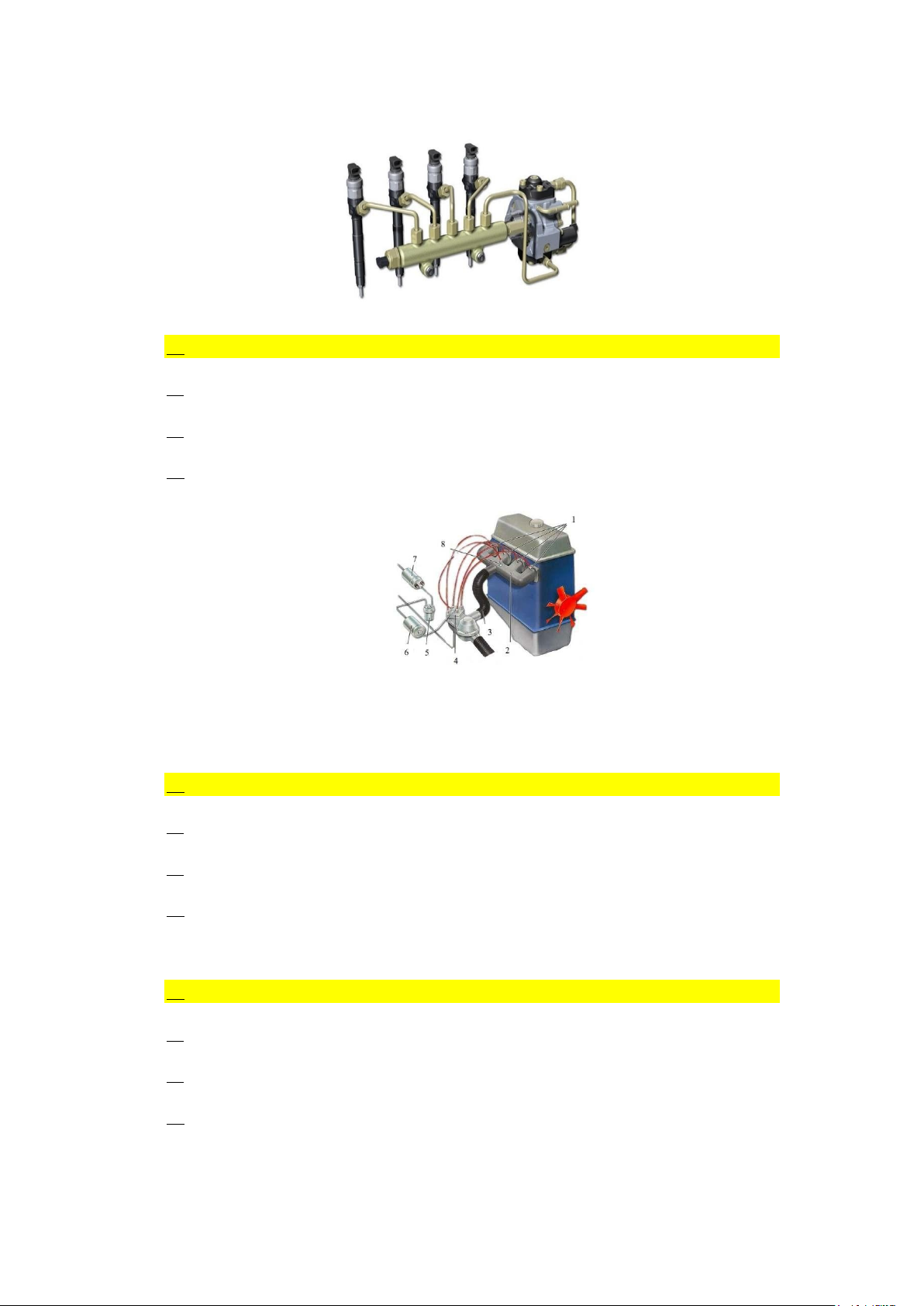

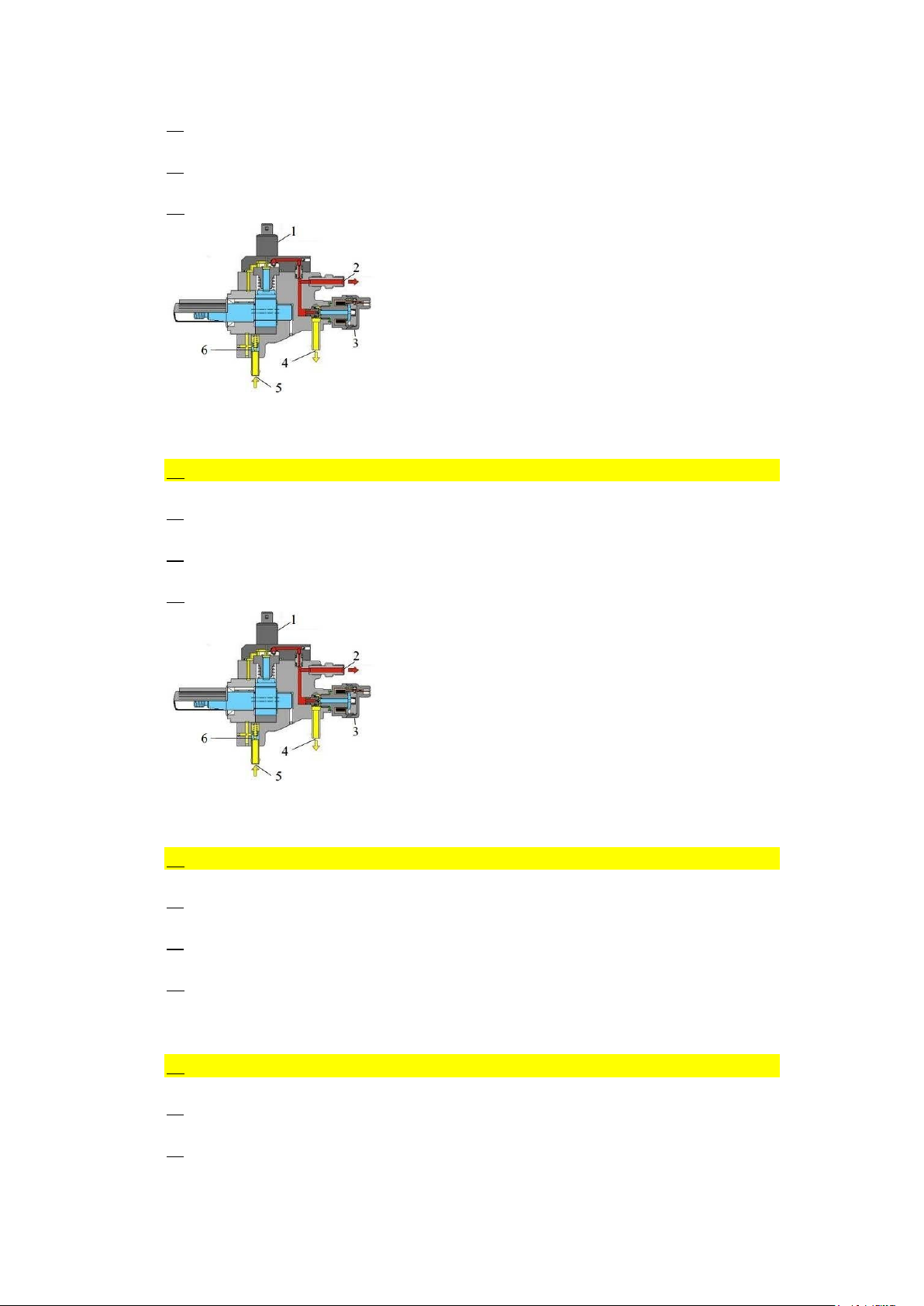

29. What this is the component of 1 in the figure 2.3? A. Element cut of vavle B. High pressure connection C. Pressure regulator D. Fuel return
30. What this is the component of 2 in the figure 2.3? A. High pressure connection B. Fuel feed C. Safety vavle D. Element cut of vavle
31. What this is the component of 3 in the figure 2.3? A. Pressure regulator lOMoAR cPSD| 58504431 B. Element cut of vavle C. High pressure connection D. Safety vavle
32. What this is the component of 4 in the figure 2.3? A. Fuel return B. Fuel feed C. High pressure connection D. Pressure regulator
33. What this is the component of 5 in the figure 2.3? A. Fuel feed B. Fuel return C. Safety vavle 6 D. Crankshaft 34. What is this? A. Fuel injector B. Element cut of vavle C. Spark plug lOMoAR cPSD| 58504431 D. Push rods
38 What this is the component of 5 in the figure 2.6? A. High pressure fuel inlet B. Fuel return to tank 1 C. Solenoid ball vavle D. Electromagnetic coil 10
35. What this is the component of 9 in the figure 2.6? A. Spindle B. Spring C. Needle D. Solenoid ball vavle
36. What this is the component of 11 in the figure 2.6? A. Fuel return port B. Fuel return to tank C. High pressure fuel inlet D. Electromagnetic coil lOMoAR cPSD| 58504431 37. What this is? A. Diesel common rail system B. Fuel system C. Starting system D. Charging system Figure 2.8: Fuel system
38. What this is the component of 1 in the figure 2.8? A. Injectors B. Inlet manifold C. Inlet tract D. Fuel filter
What this is the component of 2 in the figure 2.8? A. Inlet manifold B. Fuel filter C. Fuel distributor D. Fuel pump 7 lOMoAR cPSD| 58504431
39. What this is the component of 4 in the figure 2.8? A. Fuel distributor B. Fuel accumulator C. Fuel filter D. Inlet tract
40. What this is the component of 5 in the figure 2.8? A. Fuel accumulator B. Fuel accumulator C. Cold-start injector D. Fuel filter 6
41. What this is the component of 8 in the figure 2.8? A. Cold-start injector B. Inlet manifold C. Injectors lOMoAR cPSD| 58504431 D. Inlet tract
UNIT 3: FOUR-STROKE ENGINE
Figure 3.2: Four-Stroke Diesel Engine

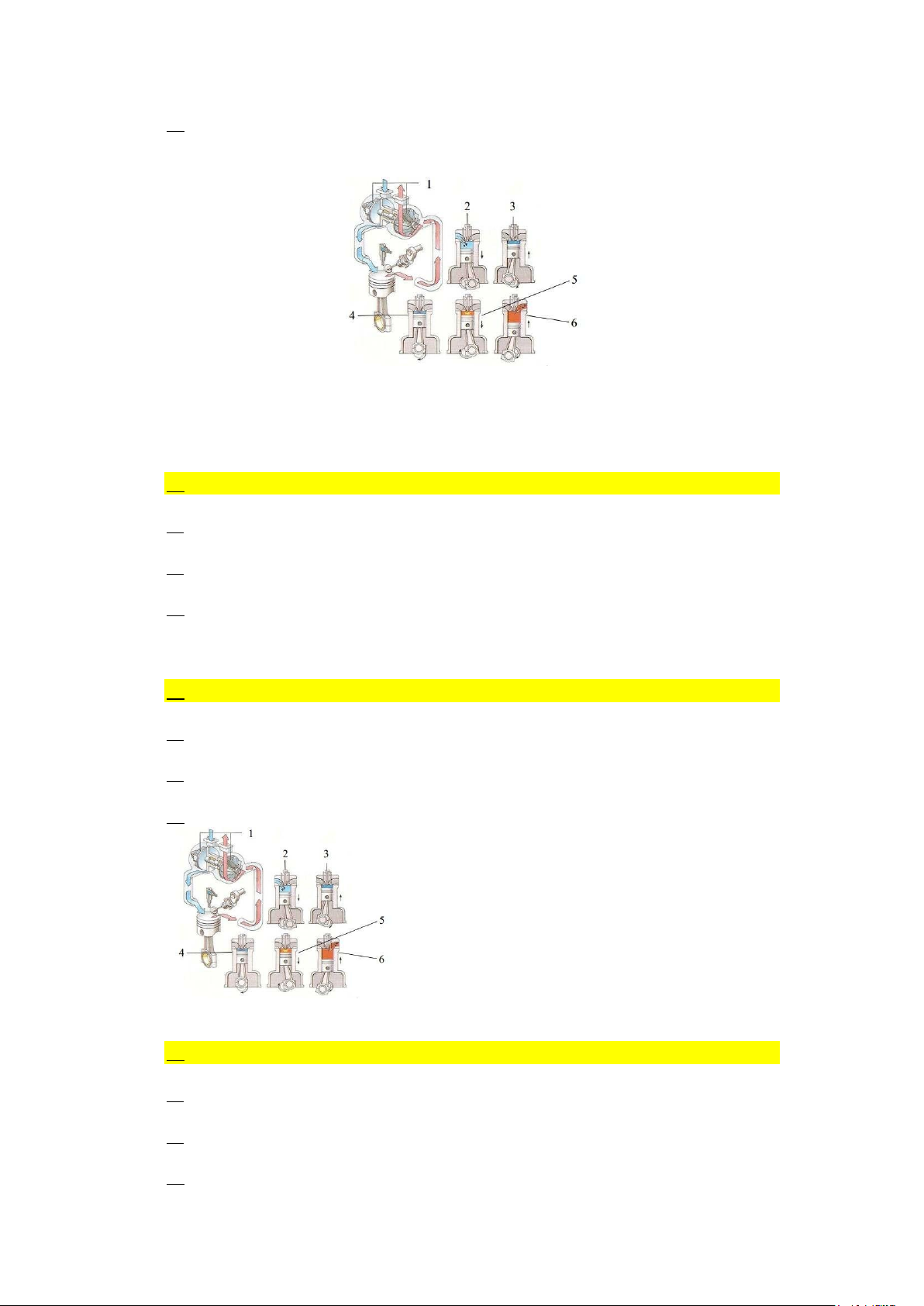

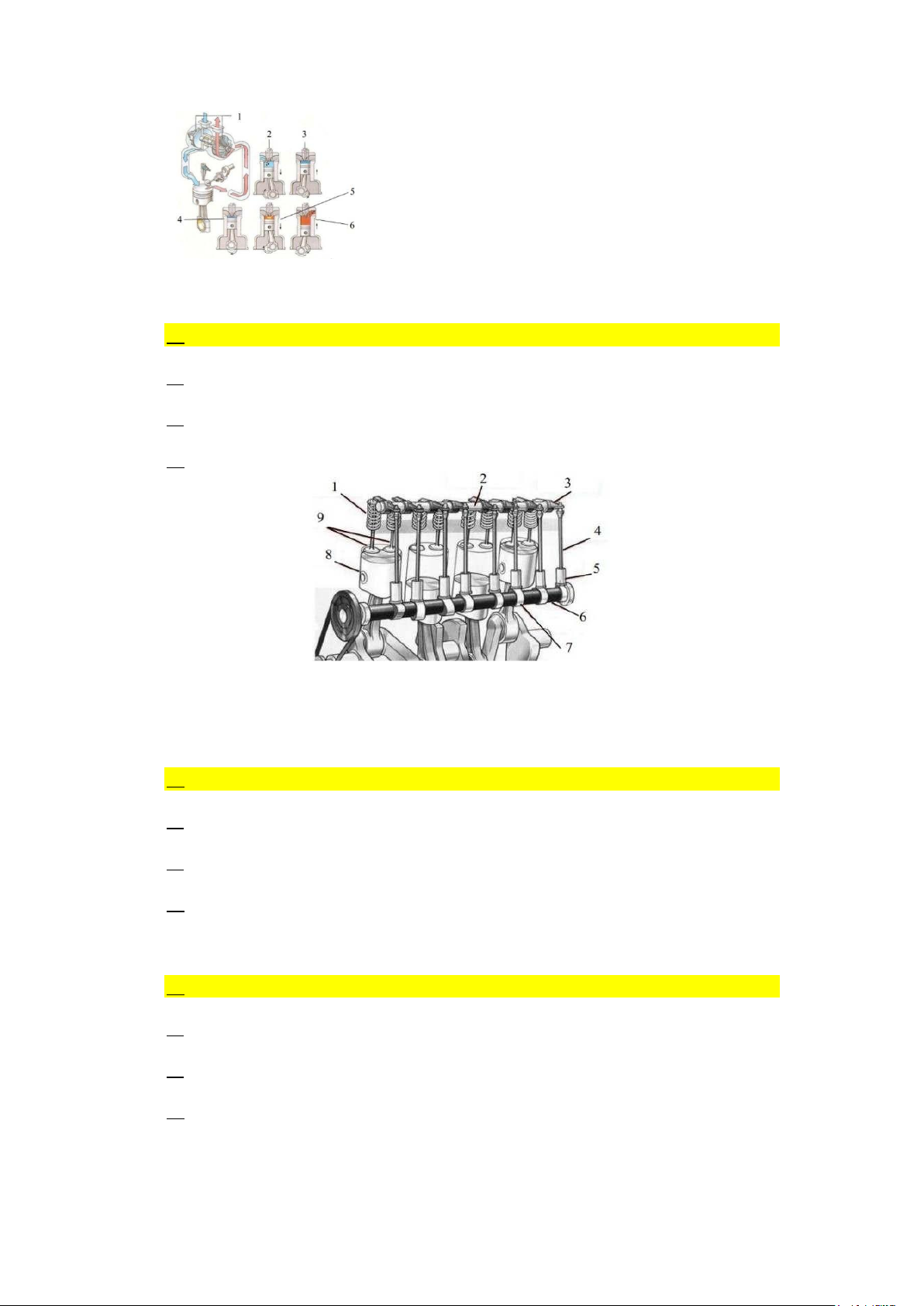

What this is the component of 2 in the figure 3.2? A. Air intake B. Compression 3 C. Fuel injection D. Power
42. What this is the component of 4 in the figure 3.2? A. Fuel injection B. Compression C. Exhaust D. Air intake
43. What this is the component of 5 in the figure 3.2? A. Power B. Air intake C. Fuel injection D. Exhaust lOMoAR cPSD| 58504431
44. What this is the component of 6 in the figure 3.2? A. Exhaust B. Power C. Compression D. Air intake Figure 3.4: Drive camshaft

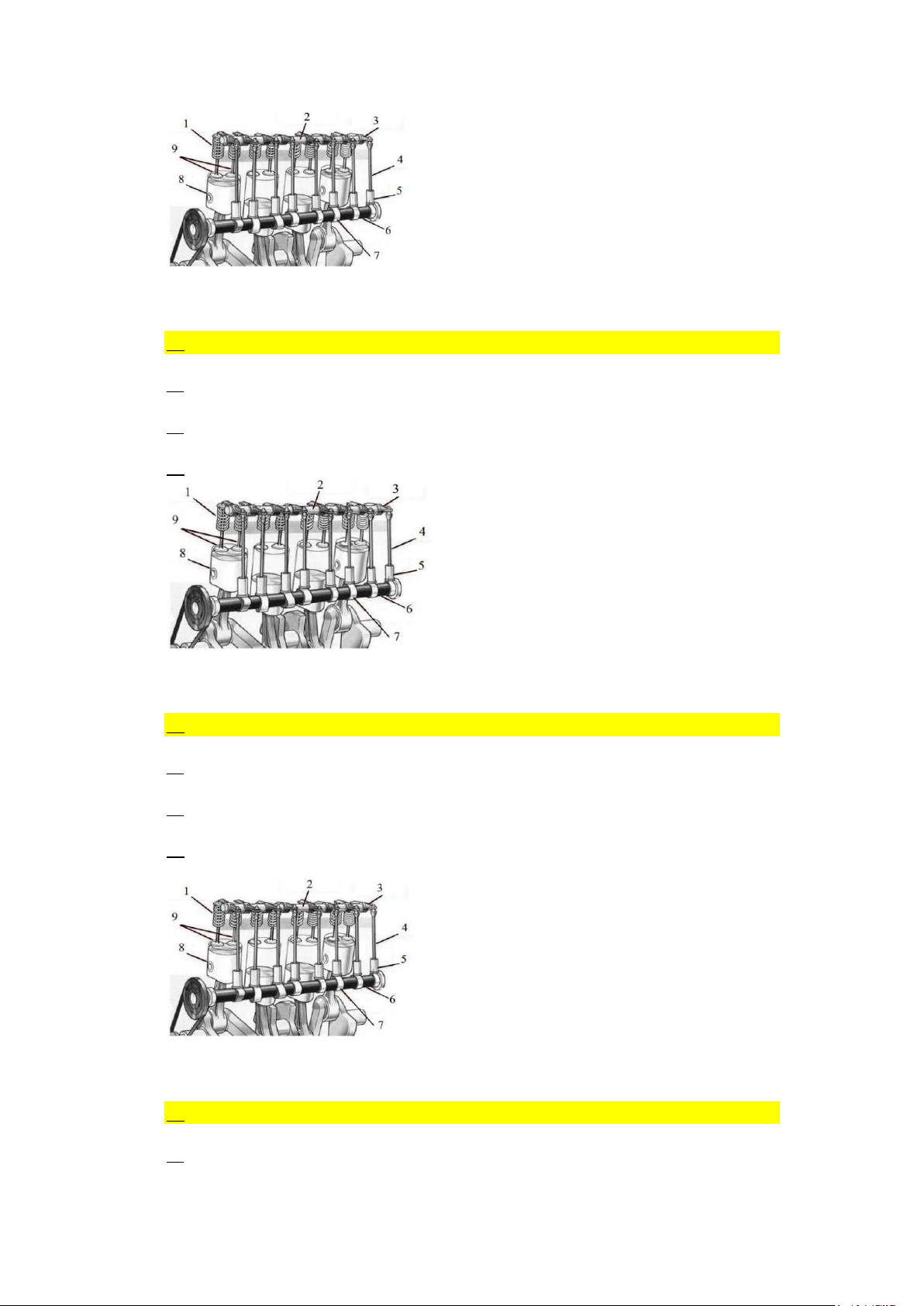

45. What this is the component of 1 in the figure 3.4? A. Valve spring B. Crown C. Push rod D. Rocker shaft
46. What this is the component of 2 in the figure 3.4? A. Rocker shaft B. Camshaft C. Valve recess D. Piston lOMoAR cPSD| 58504431
47. What this is the component of 3 in the figure 3.4? A. Rocker arm B. Rocker shaft C. Camshaft D. Push rod
48. What this is the component of 4 in the figure 3.4? A. Push rod B. Valve recess C. Crown D. Camshaft
49. What this is the component of 6 in the figure 3.4? A. Camshaft B. Tappet 5
